How to ensure the quality of rubber waterstops in different scenarios?

Mrs. Wendy June 23, 2025
I. Material Quality Assurance: Foundation of Performance1. Raw Material Traceability

  • Certification Requirements:

    • Polymer content (≥60% for EPDM)

    • Vulcanizing agent ratio (sulfur ≤1.5% for anti-aging)

    • Additive specifications (antioxidant D ≤1.0%, zinc oxide ≥5.0%)

    • EPDM/NBR/chloroprene rubber should comply with GB/T 18173.3 or ASTM D1414, with batch reports confirming:

  • Contamination Control:

    • Volatile organic compounds (VOCs) ≤0.5% (for food-grade applications)

    • Heavy metals (lead ≤100ppm, cadmium ≤5ppm) per RoHS standards

    • Prohibit recycled rubber in critical projects (underground/hydraulic); enforce virgin material testing for:

2. Material Performance Testing Matrix
Test ItemStandard MethodCritical Scenario Thresholds
Tensile StrengthGB/T 528≥12MPa for underground (EPDM), ≥15MPa for bridges
Elongation at BreakGB/T 528≥350% (normal), ≥500% for dynamic joints (metro)
Hardness (Shore A)GB/T 53160±5 for general use, 45±5 for high-deformation zones
Temperature ResistanceGB/T 3512 (hot air)-40°C non-brittle (arctic regions), +150°C ≤20% hardness loss (industrial)
Chemical ImmersionGB/T 7762 (water/acid/oil)≤10% volume change after 168h in 5% H2SO4 (chemical plants)
II. Production Process Control: Eliminate Defects at Source1. Vulcanization Process Monitoring

  • Key Parameters:

    • Temperature uniformity: ±5°C across the mold (for 300mm-wide waterstops)

    • Curing time: 15–20 minutes at 160–180°C (depending on cross-section thickness ≥10mm)

    • Pressure maintenance: ≥10MPa to prevent voids in steel-embedded types

  • Automation Standards:

    • Use PLC-controlled vulcanizing presses with real-time data logging (e.g., HYX series presses)

    • Implement AI vision systems to detect surface defects (bubbles, flash, uneven edges) with ≥98% accuracy

2. Extrusion & Molding Quality Checks

  • Cross-Section Consistency:

    • Positioning error ≤1.5mm from centerline

    • Welding strength between steel and rubber ≥8N/mm (GB/T 21873)

    • Tolerance: ±0.5mm for dimensions ≤10mm; ±1.0mm for >10mm (e.g., 30×6mm strips)

    • Steel skeleton (if embedded):

  • Batch Sampling:

    • Bonding defects between layers

    • Missing reinforcement (for composite waterstops)

    • 1 sample per 500m production run for destructive testing (tensile/aging); 100% visual inspection for:

III. Scenario-specific Quality Validation Tests1. Underground & Hydraulic Projects

  • Hydrostatic Pressure Testing:

    • 1.5× design pressure (e.g., 1.2MPa for 0.8MPa projects) for 48h, no leakage

    • Water-swellable strips: swelling pressure ≥0.8MPa after immersion (GB/T 23260)

  • Long-term Water Aging:

    • 70°C×168h water immersion, tensile strength retention ≥80%, elongation ≥300%

2. Transportation & Dynamic Load Scenarios

  • Fatigue Cycle Testing:

    • 100,000 cycles at ±20mm displacement (bridge joints), no crack propagation

    • Vibration resistance: 20–2000Hz sweep test, amplitude ≤0.1mm (metro tunnels)

  • Thermal Cycling:

    • -30°C to +60°C, 50 cycles, hardness variation ≤10% (cold regions)

3. Industrial & Chemical Environments

  • Media Immersion Testing:

    • Volume change ±5%, mass change ±3%

    • No surface cracking or delamination

    • 30 days in specific media (e.g., 10% NaOH for alkaline plants):

  • Flame Retardancy:

    • Vertical burning test (GB/T 2408), V-0 rating for cable trenches, oxygen index ≥28%

IV. Installation Quality Control: Bridge Between Product & Performance1. Site-specific Installation Protocols
ScenarioCritical Installation StepsQuality Checkpoints
Basement Construction Joints1. Clean joint to ≤2mm roughness; 2. Fix waterstop with stainless steel clips (≤300mm)Clip spacing deviation ≤50mm; concrete cover ≥50mm
Tunnel Segment Joints1. Pre-install waterstop in groove with ；2. Grouting within 24h of installationGrout pressure ≥0.5MPa; no voids in grout
Chemical Tank Linings1. Apply chemical-resistant adhesive (e.g., epoxy modified); 2. Cure for 72h before media contactAdhesion strength ≥5N/mm; air bubbles ≤1%
2. On-site Testing During Installation

  • Waterstop Positioning:

    • Laser alignment: deviation ≤2mm/m (for straight lines), ≤5mm for curves

  • Joint Sealing Test:

    • Inflatable bag test for tunnel joints: 0.3MPa pressure, pressure drop ≤0.05MPa/30min

  • Cold Welding Quality:

    • Peel test for spliced joints: ≥8N/mm peeling force (hot vulcanization preferred for critical projects)

V. Post-installation Quality Assurance1. Environmental Monitoring Systems

  • Smart Waterstops for Key Projects:

    • Temperature >70°C (abnormal heat)

    • Strain >15% of design limit (potential failure)

    • Temperature (±2°C accuracy)

    • Strain (displacement resolution ≤0.1mm)

    • Moisture penetration (electrical impedance sensing)

    • Integrate IoT sensors to monitor:

    • Alarm thresholds:

VI. Quality Management System Compliance

  • Certification Requirements:

    • WRAS (UK) for potable water applications

    • CE marking for EU infrastructure projects

    • ISO 9001:2015 for production processes

    • Product-specific certifications:

  • Traceability Documentation:

    • Raw material batch numbers

    • Production date & machine codes

    • Installation records (worker IDs, location coordinates)

    • Maintain records for 10+ years:

VII. Risk Mitigation for Common Quality Failures
Failure ModeRoot CausePreventive Measures
Waterstop DelaminationPoor rubber-steel bondingPre-treat steel with phosphating; increase vulcanization pressure
Temperature-induced CrackingInadequate cold resistanceUse EPDM with Tg ≤-50°C; avoid natural rubber in cold zones
Chemical CorrosionIncorrect material selectionPerform media compatibility tests (ASTM D471) before deployment
Installation DisplacementInaccurate joint measurementUse 3D scanning for joint profiling; simulate installation with mock-ups


By integrating material science, process engineering, and scenario-specific validation, this framework ensures rubber waterstops maintain waterproofing integrity across diverse environments. Always reference project-specific codes (e.g., AASHTO for bridges, BS 8002 for foundations) and conduct site-specific risk assessments.

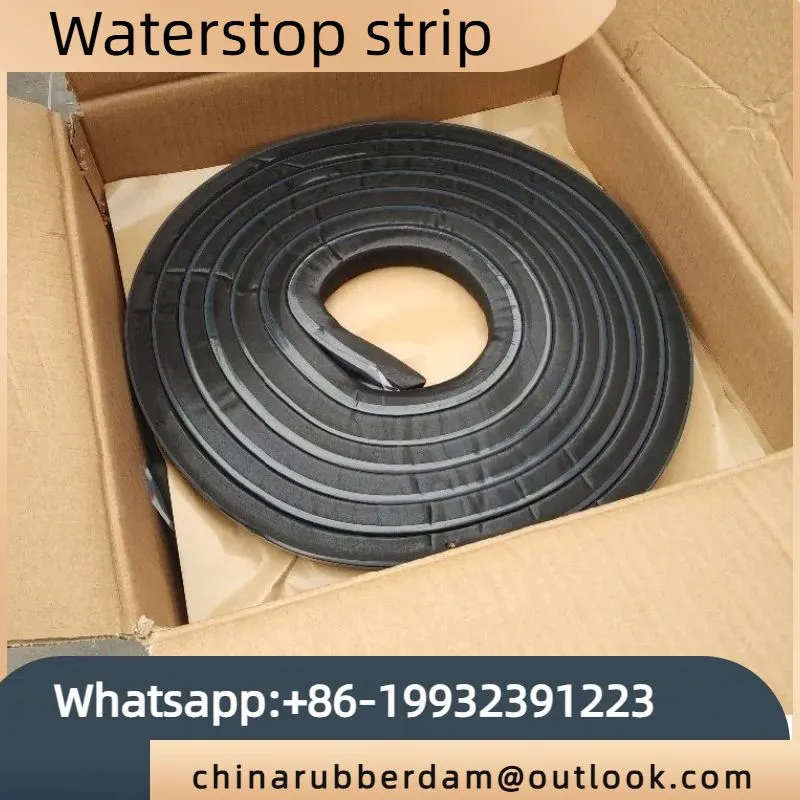

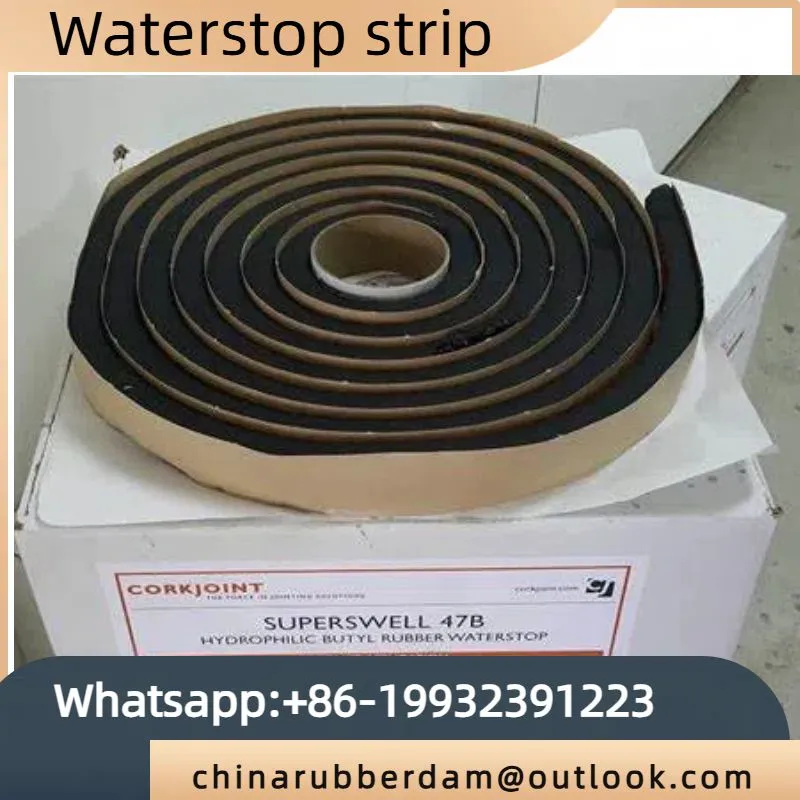

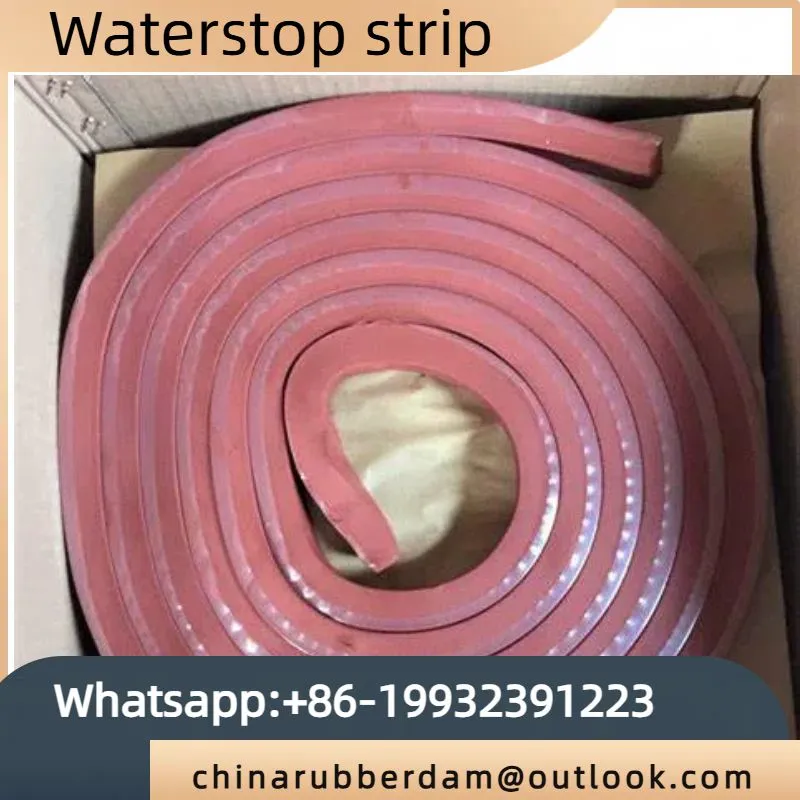

B4 (37)B4 (39)B4 (38)
